Understanding Rapier Weft Insertion in the Weaving Process by GAJERA IMPEX

Rapier weft insertion is the most widely used weft insertion technology in the fabric weaving process. This rapier weft insertion technology is versatile and capable of handling a wide range of yarn types, including delicate or textured yarns. It supports complex patterns and varied fabric widths, making it ideal for apparel fabrics, industrial textiles, and home furnishings. Now let’s get understand in more detail, how the rapier weft insertion technology work.

What is Rapier Weft Insertion in the Weaving Process?

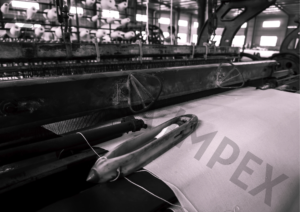

Rapier weft insertion is a modern and versatile method used in shuttleless weaving machines to insert the weft yarn into the fabric. Unlike traditional shuttle looms, rapier looms use a mechanical device—called a rapier—to carry the weft yarn across the warp shed. Rapier looms are known for their ability to weave a wide variety of fabrics with high flexibility and efficiency. At GAJERA IMPEX, we utilize advanced rapier looms to produce high-quality fabrics with precision and customization.

How Does Rapier Weft Insertion Work?

The rapier weft insertion system works by opening a shed through which the weft yarn is inserted. A rapier—either a rigid or a flexible one—enters the shed and carries the weft yarn from one side of the loom to the other. There are two main types of rapier systems: single rapier and double rapier. With single rapier looms, a single rapier enters the shed from one side, picks up the weft yarn and then passes it across the width of the fabric. It means the rapier only carries the weft yarn in one direction. After passing the weft yarn, it has to come back to its actual position without any weft insertion. This process of single rapier leads to limiting the loom speed and for this reason, this single rapier weft insertion mechanism is not using that much in the weaving process.

In a double rapier system, two rapiers are used. One is called as a “giver” and another refereed as a “taker”. One rapier carries the weft yarn halfway across the width of the fabric and hands it over to the second rapier, which completes the insertion. Let’s understand this process in more detail. The one rapier, which is called giver, it takes the yarn from the weft package on the left side of the weaving machine and brings this yarn until middle of the fabric width where the taker is coming from the other side of the weaving machine. The giver rapier transfers the weft yarn to the taker and it brings the weft yarn to the other side of the weaving machine. This synchronized movement allows the yarn to be placed accurately and with minimal tension. The process is smooth, and the mechanical precision ensures less yarn stress, making it ideal for delicate or high-value fabrics.

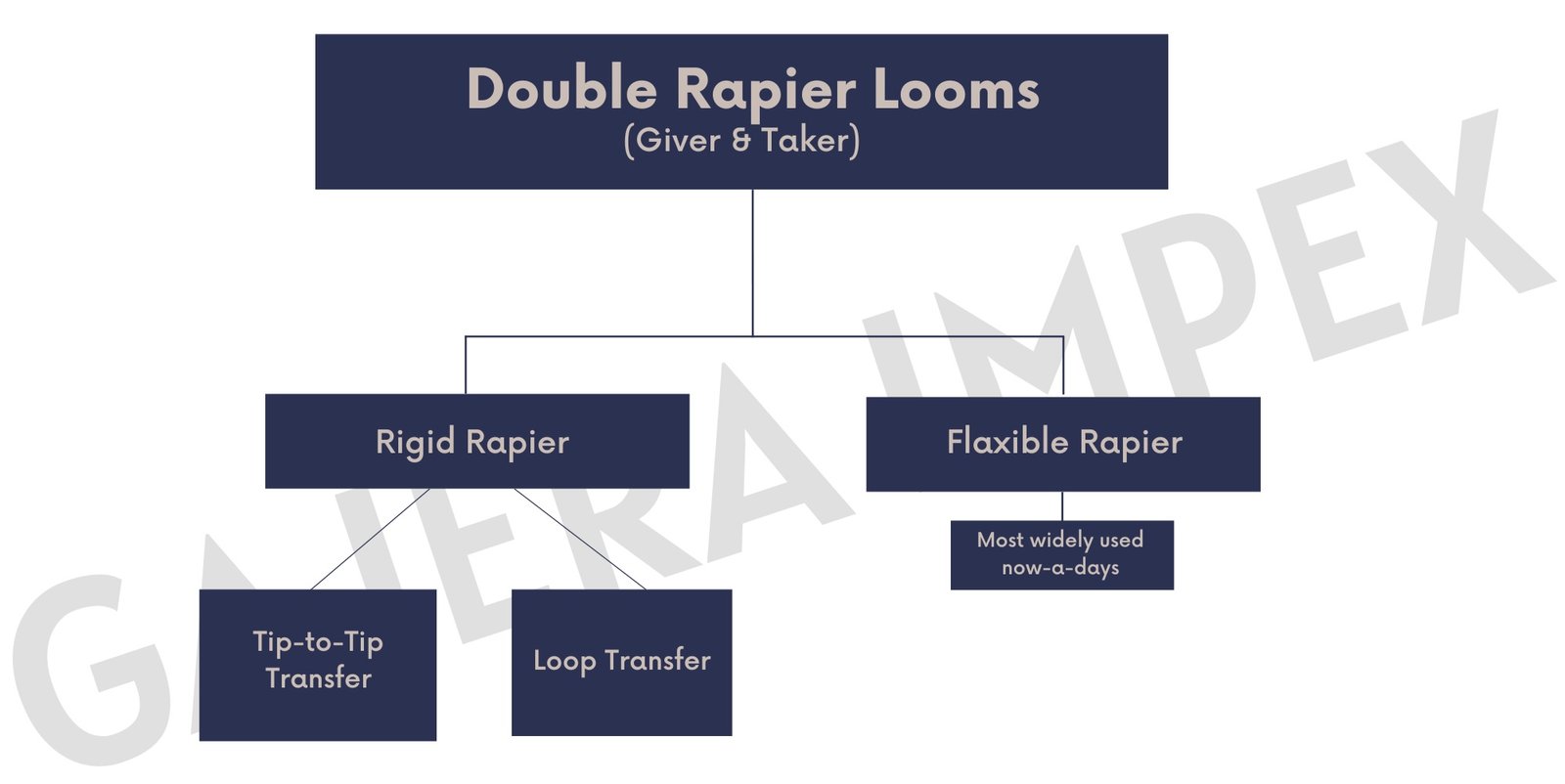

Classification of double rapier looms:

There are two types of double rapier loom, one is called “rigid” and anther is “flexible”. The common thing in these two types is that the taker completes the weft insertion. There are no any changes in the taker rapier mechanism. In a double rigid rapier loom,  the giver rapier transfers the yarn either by tip-to-tip transfer or loop transfer. In a tip-to-tip transfer system, the giver rapier grips the tip of the weft yarn and the taker rapier takes the weft yarn from this tip of the weft yarn. On the other hand, in a loop transfer system, the giver rapier does not grip the tip of the yarn, but it creates a U shape of loop in the mid-way of the width of the fabric and the taker takes this weft yarn from this loop.

In the modification of the rapier looms, the flexible rapier mechanism has been introduced. The principle of the weft insertion is the same as the rigid rapier system. The only difference is their machine mechanism. In a flexible rapier loom, the two rapiers (giver & taker) are wound on a drum on both sides, and these drums provide back-and-forth motion to both the rapiers. This mechanical system helps a lot to save space and electricity. This is the most common method of rapier weft insertion, which has been used in the weaving industry.

What is Positive and Negative Weft Transfer in Rapier Looms?

In rapier weaving, weft transfer can be classified as positive or negative. In positive weft transfer, the yarn is actively held and guided from the beginning to the end of its path by the rapier head, ensuring precise placement and tension control. This results in better fabric quality, especially with sensitive or fine yarns. In negative weft transfer, the yarn is pushed or carried with less control, often making it more suitable for simpler fabrics and higher speeds. GAJERA IMPEX uses positive rapier systems for specialized fabrics where precision and consistency are critical.

What Are the Advantages and Disadvantages of Rapier Weft Insertion?

Rapier looms offer numerous advantages. They are highly versatile, capable of weaving fabrics using a wide range of yarn types, including coarse, fine, and even fancy or specialty yarns. They support rapid style changes and are suitable for weaving complex patterns, especially when combined with dobby or jacquard mechanisms. One of the biggest advantages is that rapier looms can weave fabrics of varying widths and densities without compromising quality. However, the disadvantages include higher initial machine costs and slightly more mechanical complexity compared to other shuttle less looms like air-jet or water-jet machines. Maintenance can also be more frequent, especially in high-speed production.

What Are the Machine Parameters and Characteristics of Rapier Looms?

Rapier weaving machines are defined by several technical parameters. These include insertion speed (typically between 400–700 picks per minute), maximum fabric width (commonly up to 190–360 cm), and the type of rapier system (rigid or flexible, positive or negative transfer). The looms are often equipped with electronic let-off and take-up systems, advanced tension control, and multi-color weft selection mechanisms. The machine structure is generally robust and optimized for producing medium to heavy fabrics with high dimensional stability. At GAJERA IMPEX, we regularly upgrade and calibrate these machines to meet specific client requirements and ensure consistent output quality.

Which Kinds of Fabrics Can We Weave by using Rapier Weaving Machine?

Rapier weaving machines are suitable for a vast range of fabrics. These include cotton, polyester, viscose, silk, wool, and blended fabrics. They are particularly well-suited for producing fashion fabrics, upholstery, denim, curtain materials, technical textiles, jacquards, and heavy-duty industrial fabrics. The ability to handle various yarn counts and weft types makes the rapier loom a truly universal machine for fabric manufacturing. At GAJERA IMPEX, we use rapier looms to produce customized fabrics for both fashion or traditional apparel and home textile applications.

What Could Be the Unique Product We Can Produce on Rapier Weaving Machine?

The unique selling proposition (USP) of the rapier loom lies in its versatility. One of the most standout capabilities is its ability to produce multi-color weft fabrics, complex weaves, and jacquard designs with intricate detailing. Unlike other machines, the rapier can handle special yarns such as metallic threads, slub yarns, or boucle, making it ideal for creating designer fabrics with unique textures and patterns. At GAJERA IMPEX, our in-house design studio leverages these capabilities to produce customized jacquard and patterned fabrics that are sought-after both in domestic and international markets.

What Could Be the Productivity, Energy Consumption, and Fabric Width in Rapier Weft Insertion?

The productivity of a rapier weaving machine varies based on fabric type and yarn characteristics but typically ranges between 300 to 700 picks per minute. While not the fastest insertion method compared to air-jet looms, rapier looms offer better control and are more energy-efficient for medium to heavy fabrics. Energy consumption is moderate and varies depending on loom width, motor type, and operational load. Fabric widths can be produced up to 360 cm, which makes rapier machines suitable for wide-width home textiles or industrial fabrics. At GAJERA IMPEX, we optimize our looms for both energy efficiency and maximum output without compromising on quality.

Conclusion

Rapier weft insertion is one of the most dynamic and flexible weaving technologies available in the textile industry. It offers the perfect balance between productivity, precision, and versatility, allowing manufacturers like GAJERA IMPEX to deliver a broad range of fabric types to customers around the world. With in-house customization capabilities and a commitment to high-quality manufacturing, we continue to innovate in rapier weaving to meet the evolving needs of the global textile market.
